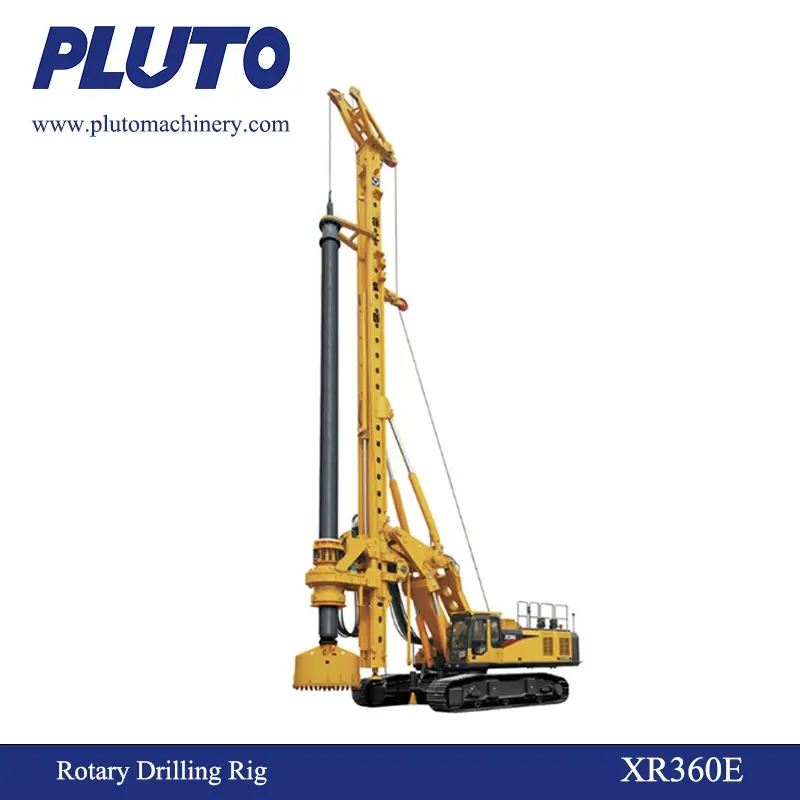

XCMG XR360E Rotary Drilling Rig

XCMG XR360E rotary drilling rig is a new generation of E series large tonnage product which increases the power and system flow on the basis of mature XR360D to improve working efficiency. It adopts optimized large-scale structural components such as slewing platform of ‘工’ shape beam, double swing arm parallelogram luffing mechanism, segmented plate thick type drilling mast and vertical pin type rotary drive bracket to improve working stability and reliability.

The rig is widely used in the foundation construction of ports, roads, railways, bridges, high-rise buildings and other projects. It adopts mechanical interlocking or friction Kelly bars to work with rotary buckets such as sand drilling bucket, cylindrical bucket and short auger. It can also be equipped with CFA, dual rotary drive, casing oscillator and other working devices.

Highlights Introduction of XCMG XR360E Rotary Drilling Rig

1. As a multi-function machine, it can realize the quick switching of functions such as crowd cylinder, crowd winch, casing oscillator, CFA and dual rotary drive to meet more different construction needs.

2. It adopts H-type hydraulic retractable crawler chassis dedicated for rotary drilling rigs and is equipped with large-diameter slewing bearing, which ensures super stability and convenient transportation.

3. The optimally designed double swing arm luffing mechanism and optimized hinge point position ensure the construction stability and transport convenience;

4. The main and auxiliary winches both adopt single-layer rope. The service life of the wire rope is 2~4 times longer than that of the multi-layer rope, which makes the cost lower.

5. It adopts Volvo electronically controlled turbocharged engine with more power and lower fuel consumption.

6. The hydraulic system adopts load-sensitive, total power control and limit power control technologies to be more efficient and energy-saving. The independent radiator has high heat dissipation efficiency.

7. The multi-gear rotary drive and main winch with single-layer rope improve the working performance by 20%, which ensures higher working efficiency.

8. The intelligent control system can achieve functions such as automatic adjustment & display of mast verticality, automatic slewing, automatic spin-off, and automatic lifting, grouting and pile type display of CFA method, etc. The bus panel design can effectively prevent misoperation.

XCMG XR360E Rotary Drilling Rig Technical Introduction

1. Chassis

It adopts XCMG TDP series retractable crawler chassis dictated for rotary drilling rigs which has high structural strength, large diameter slewing bearing and superior stability. The most mature dictated chassis for rotary drilling rigs in the industry has been applied to more than 2,000 piling equipment.

Track length 6465mm

Wheel base 5495mm

Track outer width   3500/4900mm

Track shoe width 800mm

Number of track rollers   2×13

Driving force 720kN

Traveling speed    1.6km/h

Ground pressure    125kPa

2. Engine System

The engine is selected as an imported Volvo Electronic controlled turbocharged engine, which has low fuel consumption and meets Euro III emission standards, optional country four stage emissions,energy-saving and environmentally friendly; Sufficient power reserves to meet the requirements of high-altitude construction.

3. Hydraulic System

The hydraulic main system adopts load sensitive LUDV control technology to obtain the best composite action handling performance. Main pump with constant power control provides high working efficiency. The auxiliary system adopts load-sensitive LS technology to be energy-saving and efficient.

4. Rotary Drive

Adopting a vertical pin connection type power box and bracket, it has high reliability and is easy to disassemble and assemble quickly; The lower cover of the box is designed with double-layer sealing, which has good sealing performance and long service life; Standard casing driver, strong casing running ability of drilling rig.

5. Winch

The main and auxiliary winches both adopt XCMG’s industry-leading single row rope technology, effectively solving the problem of wire rope wear and improving the service life of wire ropes by 2-4 times. The main winch meets the operating conditions of M6-T5.

Main winch

Auxiliary winch

Pressure winch (optional)

6. Kelly Bar

Mechanical interlocking and friction Kelly bars are optional for XR360E rotary drilling rig. Mechanical interlocking Kelly bar is suitable for rock formations and friction Kelly bar is suitable for soil formations. There are four-section mechanical interlocking Kelly bar and five-section friction Kelly bar.

Diameter of Kelly bar φ508mm

Rectangular head dimension   200×200 mm

Drilling depth (as listed)

7. Drilling Mast

The segmented-plate thick box-type design of high-strength material combines strength and rigidity. It is equipped with double jib large parallelogram luffing mechanism to obtain larger support range, support angle and more stable operations.

8. Cab

Anti-noise cab with FOPS function is equipped with air conditioner, internal and external lighting, windshield wiper with water spray function, etc. Large skylight design provides a good view; upper protective net can be opened for easy cleaning. The seat, display screen and monitor screen can be adjusted to provide the operator with a comfortable working environment.

9. Electrical system

Rexroth RC28 series controller and Hirschmann 10.4-inch displayer are adopted; the page layout takes full consideration of humanization and convenience; hierarchical processing is adopted, where data calibration and parameter modification require different permissions; inclination, pressure and other sensors are all imported; wiring harness adopts knitting technology to be waterproof. The wiring harness adopts weaving technology, which is waterproof and wear-resistant; Add rubber and other small accessories to the connectors to ensure waterproof performance.
