Horizontal Directional Drilling Rig
Main Technical Parameters
| Engine Rated Power | 194 /2200 kW/r/min |
| Max Thrust/ Pullback force | 500/900 kN |
| Max Thrust/ Pullback speed | 55 m/min |
| Max Rotation torque | 27000 N ·m |
| Max. Rotation speed | 145 r/min |
| Mud pump Max Flow rate | 600L/min |
| Mud pump | 8MPa |
| Weight | 14000kg |
Description
Specification
Logistics & Stock

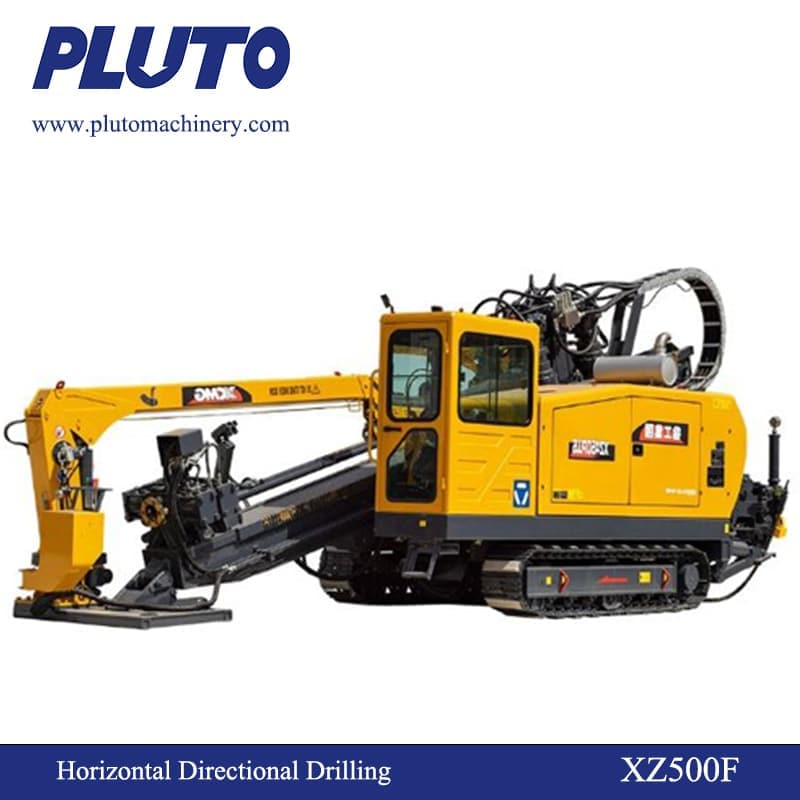

Product Model：XZ500F Horizontal Directional Drill(HDD)
Manufacturer：XCMG Foundation Construction Machinery Group Co.; Ltd.
XZ500F HDD is the new products which set advanced technology, user experience,
efficiency of construction as a whole, and pay more attention to construction requirements,operation habit, system energy saving, and could be widely used in urban pipeline construction such as electric power , communication, cable TV and so on .
1.Controller + dual handle + display integrated operating system, providing comfortable operation performance and flexible adjustment performance for the whole machine, the selection of first-class brand hydraulic components to ensure
reliable operation of the hydraulic system of the whole machine.
2.Efficient one-button operating system, semi-automatic one-button on rod, one-button off rod, vise one-button shackle, one-button working speed, one-button rotation speed, one-button push and pull speed, operation efficiency increased by 15%.
3.Gear rack thrust/pull design insures operation. Floating carriage can protect the screw thread of the rods.
4.High-speed sliding systems, piston motor to achieve high and low sliding speed of carriage, increasing the ability to adapt the machine working conditions, promote construction efficiency.
5.The machine adopts armrest box switch, logic interlock, walking Angle switch after, safe
and convenient.
6.Sliding, rotating system multiple output, modular common rail fuel system and electronic control module, system energy saving, high efficiency of construction, efficiency increased by 15%.
7.Aviation damping seat, HD display, multifunctional integrated handle, open engine compartment,high operation comfort, convenient maintenance.
8 .Support the diverse needs of customers, the machine can be increased with mud antifreeze,automatic loading rod, electrical shock protection automatic thread oil daub etc, reduce the workingstrength, improve the construction efficiency.
XZ500F/XZ500FPlus HDD Accessories Configuration:
| Name | Type | Form | Specification | Note | |
| Drilling Rods | Integrated/Weld | ￠89mm×4.5m | NC31 | ||
| Drilling Rigs | Back Reamer | Extrusion | ￠400mm | ||
| ￠500mm | |||||
| ￠600mm | Double Horse | ||||
| ￠700mm | North Star | ||||
| ￠800mm | |||||
| ￠900mm | |||||
| ￠1000mm | |||||
| ￠1100mm | |||||
| ￠1200mm | |||||
| Tunnel | ￠400mm | ||||
| ￠500mm | |||||
| ￠600mm | |||||
| ￠700mm | |||||
| ￠800mm | |||||
| ￠900mm | |||||
| ￠1000mm | |||||
| ￠1100mm | |||||
| ￠1200mm | |||||
| Accessories | Drilling Bit | 89 | |||
| Drilling Plate | 89 | ||||
| Outer Puller | 89 | ||||
| Inner Puller | 89 | ||||
| Transfer Case | XZ500F | 60t | |||
| XZ500FPlus | 80t | ||||
| Connect | 89 | ||||
| Mud System | Mud Mixing System | 5 Cube | Shanghai | ||
| Instrument | Guide Instrument | F2 | US DCI | ||
| F5 | |||||
| SE | |||||
| Navigator E/ET | XCMG | ||||
| Detector | 8100 | Radiodetection | |||
| Item | Unite | Parameter | |
| Engine | Manufacturers | / | Dongfeng Cummins |
| Model | / | B6.7CS4-260C | |
| Rated Power | kW/r/min | 194 /2200 | |
| Thrust/ Pullback | Type | / | Piston Motor+ Reduction Box |
| Max Thrust/ Pullback force | kN | 500/900 | |
| Max Thrust/ Pullback speed | m/min | 55 | |
| Rotation | Type | / | Piston Motor+ Reduction Box |
| Max Rotation torque | N ·m | 27000 | |
| Max. Rotation speed | r/min | 145 | |
| Pipe | D × L | mm×mm | φ89×3000 |
| Mud pump | Max Flow rate | L/min | 600 |
| Max Pressure | MPa | 8 | |
| Weight | kg | 14000 | |
| Name | Manufacture factory |
| Engine | Dongfeng Cummins/SDEC |
| Rotation Pump | Danfoss |
| Thrust-Pull Pump | XCMG |
| Auxiliary Pump | Permco |
| Rotary Motor | XCMG |
| Thrust-Pull Motor | XCMG |
| Reduction Box | XCMG |
| Hydraulic tube | XCMG |
| Hydraulic oil cylinder | XCMG |
| Hand Shank | XCMG |
| Walking speed reducer | XCMG |
Overall dimension as following:
| Item | Unit | Parameter |
| Overall length（A） | mm | 7500（3m ）/8800 （4.5m ） |
| Overall width(B) | mm | 2280 |
| Overall height(C) | mm | 2610 |
| Track width (E) | mm | 2250 |
XZ500F HDD machine start when accompanied by the packing list, include the following technical documents:
Product Certificate
Product Manual
Engine Specification
Engine Warranty
Mud Pump Instruction Manual
Packing List (including wearing parts and spare parts inventory, vehicle tools inventory, shipping list
with items)
 |  |
