Horizontal Directional Drilling Rig
Main Technical Parameters
| Engine Rated Power | 118 kW / 2200 r/min |
| Max thrust-pull force（kN） | 230/270 |
| Max thrust-pull speed（m/min） | 55 |
| Torque（N ·m） | 7000 |
| Max spindle speed（r/min） | 175 |
| Mud pump Max Flow rate（L/min） | 250 |
| Mud pump Max pressure（MPa） | 8 |
| Weight | 9000kg |
Description
Specification
Logistics & Stock
Manufacturer：XCMG Foundation Construction Machinery Group Co.; Ltd.
XZ230F HDD is the new products which set advanced technology, user experience, efficiency of construction as a whole, and pay more attention to construction requirements, operation habit, system energy saving, and could be widely used in urban pipeline construction such as electric power, communication, cable TV and so on.
1.The height of the whole machine´s entry point is low, and the adjustment range of the
drill frame angle large enlarged: 10～22 °, owing good adaptable ability;
2.Hydraulic pilot control, provide comfortable operating performance and flexible regulation, first-class brand of hydraulic components to ensure the reliability of the machine hydraulic system;
3.Rack and pinion sliding, to ensure the stability of the carriage and the reliability of drive operational. The floating technology of drilling head can greatly protect the drill pipe thread, the service life of the drill pipe 30% increase.
4.High-speed sliding systems, piston motor to achieve high and low sliding speed of carriage, instantaneous increase ,increasing the ability to adapt the machine working
conditions, promote construction efficiency.
5.Mud flow can be operated in cab, convenient and swift.
6.The whole machine adopts protection technology such as seat switch, logic interlock, proportional wire-controlled walking, electrical shock protection and so on, meet the
CE safety certification requirements.
7.Sliding, rotating system multiple output, quick clamping speed ofvice,system energy
saving, high efficiency of construction, efficiency increased by 30%.
8.Support the diverse needs of customers, the machine can be increased with cab, air conditioner, cold start, mud antifreeze, automatic loading rod, electrical shock protection automatic thread oil daub etc, reduce the working strength, improve the construction efficiency.
Other accessories of XZ230F horizontal directional drill rig are configured as follows:
| Name | Type | Form | Specification | Remarks |
| Drill | Monolithic | ￠60mm×3m | XCMG | |
| Welded type | ||||
| Drilling Tools | Reamer | Squeezed style | ￠200mm | |
| ￠300mm | ||||
| ￠400mm | ||||
| ￠500mm | XCMG | |||
| ￠600mm | ||||
| ￠700mm | ||||
| Runner type | ￠200mm | |||
| ￠300mm | ||||
| ￠400mm | ||||
| ￠500mm | ||||
| ￠600mm | ||||
| ￠700mm | ||||
| Accessories | Drill guide | 60 | ||
| Starting lever | 60 | |||
| Drilling Tools | Accessories | Guide plate | 60 | |
| Torques | 60 | |||
| L-nut | 60 | |||
| Male slider | 60 | |||
| Female slider | 60 | |||
| Splitter | 20t | |||
| Connect | 60 | |||
| Mud system | Mud Mixing System | 3立方 | XCMG | |
| Instrument | Guide Instrument | Navigator E | XCMG | |
| Detector | 8100 | Radiodetection | ||
| Item | Parameter | |
| Engine | Manufacturers | Dongfeng Cummins |
| Model | B5.9CS4 160C | |
| Rated Power | 118 kW / 2200 r/min | |
| Thrust-Pull | Type | Pinion and rack drive |
| Max thrust-pull force（kN） | 230/270 | |
| Max thrust-pull speed（m/min） | 55 | |
| Rotation | Type | Two motor |
| Torque（N ·m） | 7000 | |
| Max spindle speed（r/min） | 175 | |
| Pipe | Diameter × Length（mm×mm） | Φ60×3000 |
| Mud pump | Max Flow rate（L/min） | 250 |
| Max pressure（MPa） | 8 | |
| Weight | / | 9000kg |
| Name | Manufacture factory |
| Engine | Dongfeng Cummins |
| Rotation Pump | Permco |
| Thrust-Pull Pump | Permco |
| Auxiliary Pump | Permco |
| Rotary Motor | Eaton |
| Thrust-Pull Motor | Liyuan |
| Reduction Box | XCMG |
| Hand Shank | XCMG |
| Walking speed reducer |
The machine transportation dimension 6100×2200×2300mm
Shipping weight (free of drill and drilling tools) 9.0t
Handling drill equipment (free of drill and drilling tools) 10.5t
XZ230F HDD machine start when accompanied by the packing list, include the following technical documents:
Product Certificate
Product Manual
Engine Specification
Engine Warranty
Mud Pump Instruction Manual
Packing List (including wearing parts and spare parts inventory, vehicle tools inventory, shipping list with items)
Related Articles Link:
XCMG XZ320D Horizontal Directional Drilling Rig Machine HDD Drill Equipment
XCMG XZ130F Horizontal Directional Drilling Rig Machine HDD Drill Equipment
 |  |
cooperative partners
XCMG XZ120E Horizontal Directional Drilling Rig Machine HDD Drill Equipment
XCMG XZ350F Horizontal Directional Drilling Rig Machine HDD Drill Equipment
XCMG XZ1300F Horizontal Directional Drilling Rig Machine HDD Drill Equipment
XCMG XZ600F Horizontal Directional Drilling Rig Machine HDD Drill Equipment
XCMG XZ6600 Horizontal Directional Drilling Rig Machine HDD Drill Equipment
XCMG XZ420E Horizontal Directional Drilling Rig Machine HDD Drill Equipment

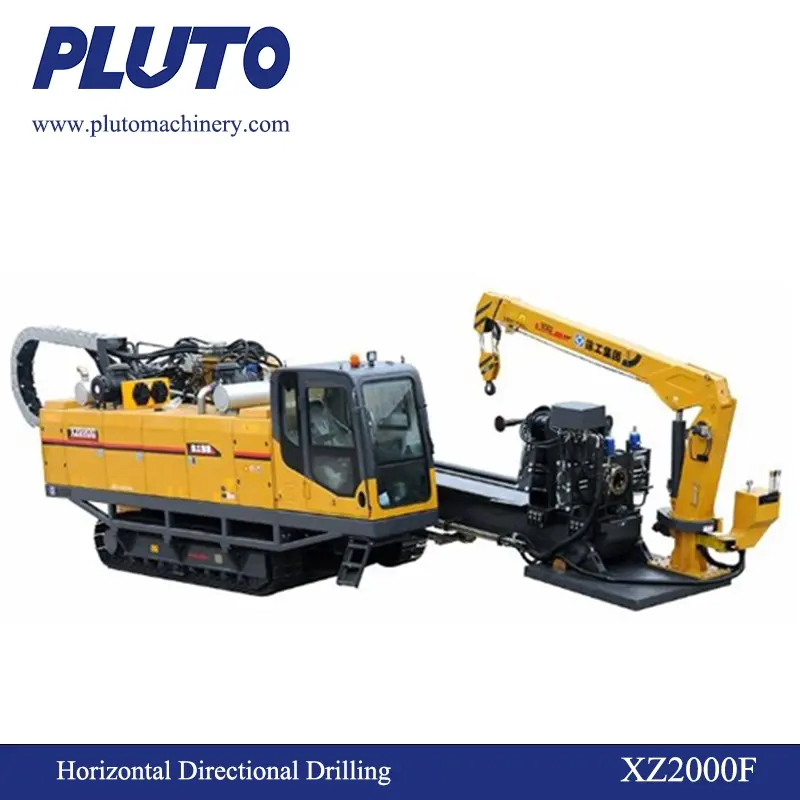

XCMG XZ2000F Horizontal Directional Drilling Rig Machine HDD Drill Equipment

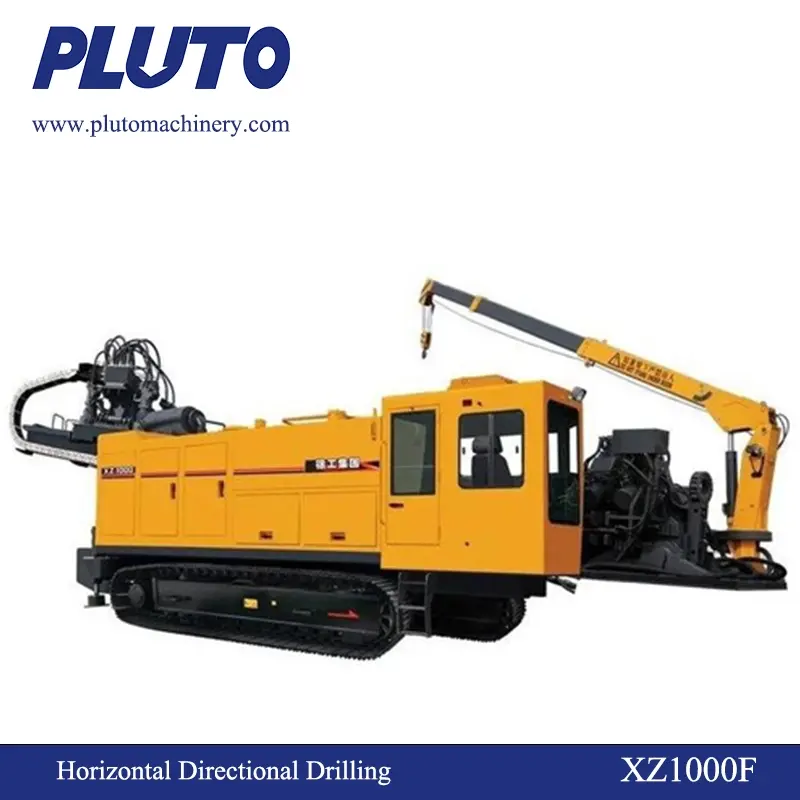

XCMG XZ1000F Horizontal Directional Drilling Rig Machine HDD Drill Equipment
