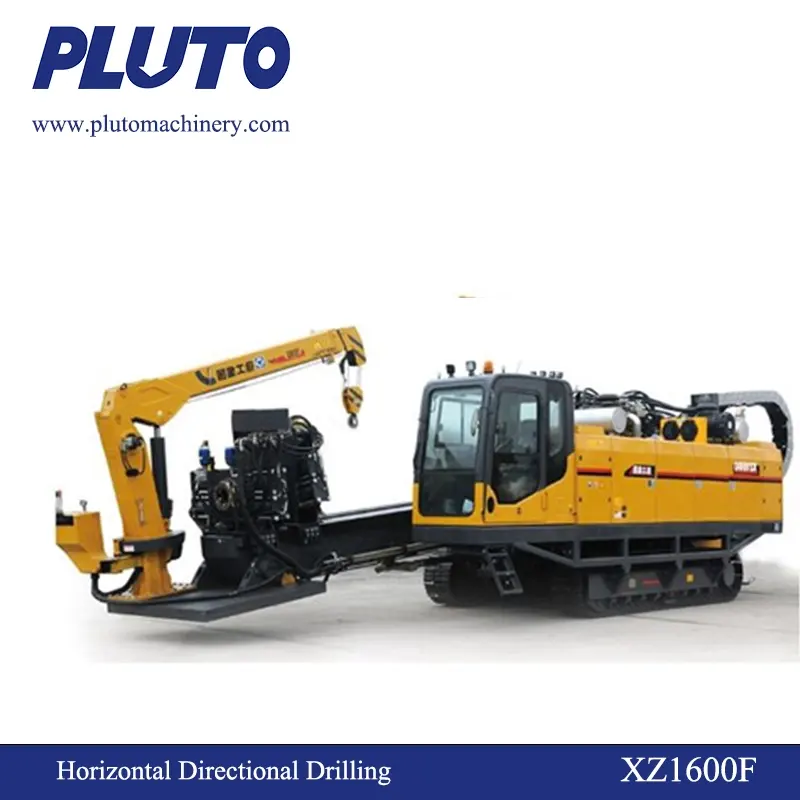

XCMG XZ1600F Horizontal Directional Drilling Rig Machine HDD Drill Equipment

Product Model： XZ1600F Horizontal Directional Drill
Manufacturer： XCMG Foundation Construction Machinery Co. ，LTD.
The XZ1600F horizontal directional drilling rig is an integrated fully self-contained design. It adopts a number of advanced energy-saving control technologies such as closed energy-saving loop, electro-hydraulic proportional control, load-sensitive control and the company’s proprietary technology. Its main performance parameters and control technology have reached International advanced level. Hydraulic system, transmission system, reducer, electrical control system and other main components are selected from first-class International brand products with high reliability.

1.Features Introduction of HDD

1. The digital instrument panel automatically presents key construction parameters in real time during operation, such as actual torque and push-pull force, ensuring intuitive and easy operation. Equipped with high-sensitivity electronic sensing technology, it can promptly respond to instantaneous overloads and provide reliable protection for the drilling rig.

2. The PE pipeline elastic balance release technology effectively avoids equipment damage caused by the reaction force of the back-towing pipeline, significantly enhancing the stability and reliability of construction operations.

3. Adopting the patented rotatable tooth seat technology, the drill pipe can be automatically centered and clamped firmly, ensuring precise and stable drilling operations.

4. Equipped with advanced overload protection technology, the drilling rig’s rotational torque, push-pull force, and vise clamping force are all adjustable. It adopts digital pressure regulation technology, enabling convenient, simple adjustment and accurate presetting of parameters.

5. The cab can rotate 45 degrees, which optimizes the operating perspective and greatly improves the comfort of operators during long-term construction.

6. Featuring mud auto-start/stop technology and mud flow adaptive technology, the drilling rig can automatically open or close the mud channel based on its working status. It can also automatically adjust the mud flow according to real-time factors such as engine speed, push-pull speed, and reaming stage, thereby reducing substantial mud waste.

7. The vise supports semi-automatic one-key operation, realizing one-key clamping for shackle operation and semi-automatic one-key flipping and leveling. This greatly reduces the number of repeated operations for operators and improves work efficiency.

8. The constant torque automatic reaming function achieves automatic reaming construction with constant torque based on load feedback. This further optimizes the automatic reaming performance, ensuring efficient and high-quality construction results.

9. Equipped with a swing drilling function, the drilling rig can realize rapid forward and reverse rotation through the power head for swing drilling operations. This effectively solves practical construction problems such as drill jamming and difficult drilling.

10. Multiple working mode options are available, including three switchable modes: normal, soil layer, and rock layer. It is suitable for various working conditions, such as rapid cutting in soil layers and micro-motion control in rock layers. In addition, mode parameters can be modified according to actual construction needs for enhanced flexibility.

11. Rotary gear adaptive function: Equipped with an automatic gear control system based on stepless rotary speed regulation and rotary torque negative feedback. When it detects a long-term mismatch between current torque and gear, it automatically adjusts the gear, effectively achieving overload protection and efficient construction.

12. The vise clamping force is adaptive. It can automatically set the vise clamping pressure according to the current torque limit value, which effectively reduces wear on the vise teeth, drill pipes, and drilling tools, extending the service life of the entire drilling rig and its accessories.

13. Memory cruise function: It supports one-key cruise based on push-pull speed locking/memory and rotation speed locking/memory. With one key, it can restore the construction status of the previous cycle, which is particularly effective in the more stable reaming stage to ensure consistent construction quality.

14. The engine intelligent module integrates multiple practical functions, including automatic idling, one-key operation speed adjustment, and engine power control. It can effectively reduce fuel consumption during standby and provide reliable engine protection under extreme load conditions.

15. Safety protection module: It includes multiple safety functions such as power head position monitoring, power head deceleration zone setting, semi-automatic anti-collision, and upper rod torque limiting. These functions comprehensively improve the overall safety of the drilling rig during operation.

2.Drill pipe drilling tool configuration

The XZ1600F horizontal directional drilling rig drill pipe, drilling tools and other accessories are configured as follows:

3.Main technical parameters

4.Core parts subsidiary

5.The Machine Appearance and Transportation

The machine transportation Dimension 11700×2760×3550mm
Shiping weight(free of Drill and Drilling Tools) 26t

6.Accompanied Attached Documents

HDD machine start when accompanied by the packing list, include the following technical documents：
Product certificate
Product Manual
Engine Specification
Air Conditioning of Construction Vehicle General Manual
Operation and Maintenance Manual of Loader Crane
Mud Pump Instruction Manual
Packing List (including wearing parts and spare parts inventory, vehicle tools inventory,
shipping list with items)
