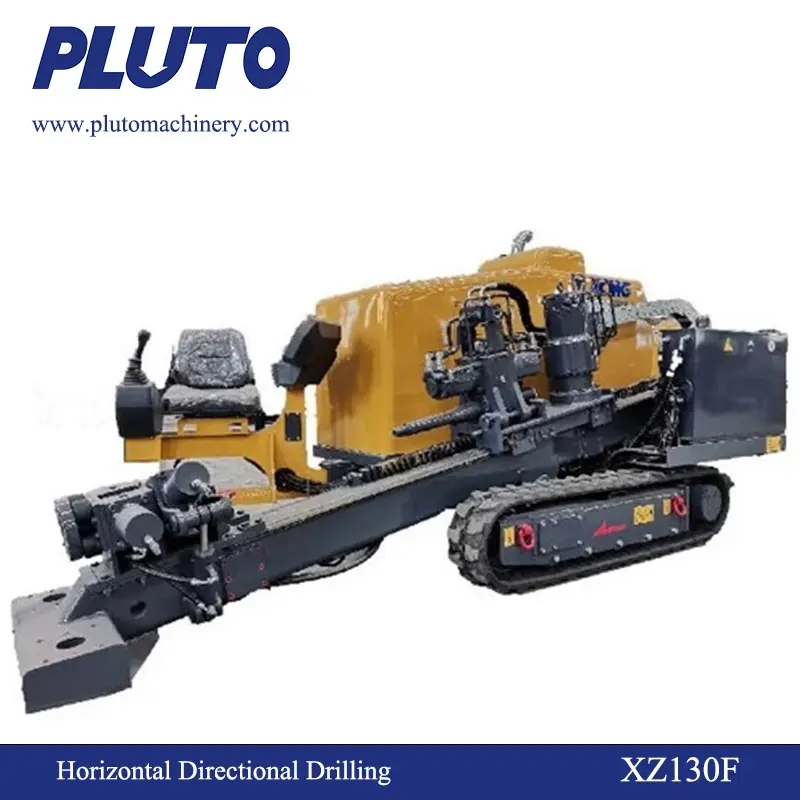

XCMG XZ130F Horizontal Directional Drill (HDD)

Manufacturer：XCMG Foundation Construction Machinery Group Co.; Ltd.
XZ130F HDD structure compact, high performance, full-featured, hydraulic pilot control, sliding rack and pinion, the main performance parameters and control technology has reached the international advanced level. Hydraulic systems, power systems, running system, and the main components are made of domestic first-class brand products, good performance, good reliability.

1.XCMG XZ130F Features Introduction

1.Hydraulic pilot control, with comfortable handling and flexible regulation, first-class brand of hydraulic components to ensure the reliability of the whole hydraulic system.
2.Rack and pinion sliding, to ensure the stability of the carriage and the reliability of drive
operational. Carriage floating, patented technology can greatly protect the drill pipe thread, increase the service life of the drill pipe.
3.High-speed sliding systems, variable motor to achieve high and low carriage sliding
change, increasing the ability to adapt the drilling rig working conditions, improve the
efficiency of the drilling rig construction
4.Stable chassis support, using the classic H-beam structure, high quality rubber track, provide a strong guarantee for the stability of the whole construction. \
5.Machine with small inclination angle and low output shaft of carriage meet with
construction requirements ofsmall angle and short distance.

2.XCMG XZ130F Technology Introduction

1.XCMG XZ130F Hydraulic System

Using a hydraulic pilot control, hydraulic components are domestic first-class brand. Most
important parts of hydraulic system are made of leading domestic and foreign products, good performance, good reliability.
Hydraulic system pressure 21MPa；
Fuel tank volume 140L；

2.XCMG XZ130F Engine System

Choose Dongfeng Cummins turbocharged engine, strong power, emissions meet China IV
emission standard.
Engine type B3.9CS4-110C
Rated power 81kW
Rated speed 2200 r/min
Maximum engine torque 480N·m /（1600r/min）
Emission standards China IV

3.XCMG XZ130F Chassis

XZ130F use classic H-beam structure, high quality rubber track, site adaptability, high reliability, walking gear, stable performance, walking speed can reach 2.1km / h.

4.XCMG XZ130F Carriage

The drilling rig completed by rack and pinion sliding action, carriage floating device can
effectively protect the drill thread, variable-speed motor to achieve sliding; equipped with φ52/60×1800 drill pipes.
Max Thrusting /pulling force 135kN
Max. Thrusting /pulling speed m/min
Max spindle torque 3200N·m
Max. Rotation speed 230r/min

5.XCMG XZ130F Mud Systerm

100L mud pump system according to the construction, to provide powerful construction, large flow, ensure the smooth construction.
Max. Mud pump flow 100L/min
Max. Mud pump pressure 40bar

6.XCMG XZ130F Console

Collaboration with professional bodies, Cab, console ergonomics analysis and research, fully considered during the operation operator comfort and instrument layout is reasonable.

7.XCMG XZ130F Pipe Loader(Optional)

Machine can option automatic full-automatic pipe loader, to achieve handling drill
automation. Optional Full-automatic pipeloader, Drilling box can accommodate 48 piece of φ52/60×1800 drill pipes, this system can add pipe capacity for long distance construction Efficient automation construction, reduce construction costs and labor intensity.
Note：This Full-automatic pipeloader use φ52/60 drill pipes！

8.XCMG XZ130F Anchor(Optional)

Main machine with normal anchor, also can option automatic anchor help push and drill, highly automated and great power, reduce labor intensity.

9.XCMG XZ130F Drill and Drilling Tools

3.XCMG XZ130F Main technical parameters

4.XCMG XZ130F Main part configuration

5.XCMG XZ130F Transport Program

The machine transportation dimension 4200× 1680×2170mm
Shiping weight(free of drill and drilling tools) 5.0t

6.XCMG XZ130F Accompanied Attached Documents

XZ130F HDD machine start when accompanied by the packing list, include the following
technical documents
Product Certificate
Instruction Manual
Operation and Maintenance Manual of Engine
Quality Assurance Manual of Engine
Mud Pump Instruction Manual
Packing List (including accompanied spare details, accompanied tools list)
