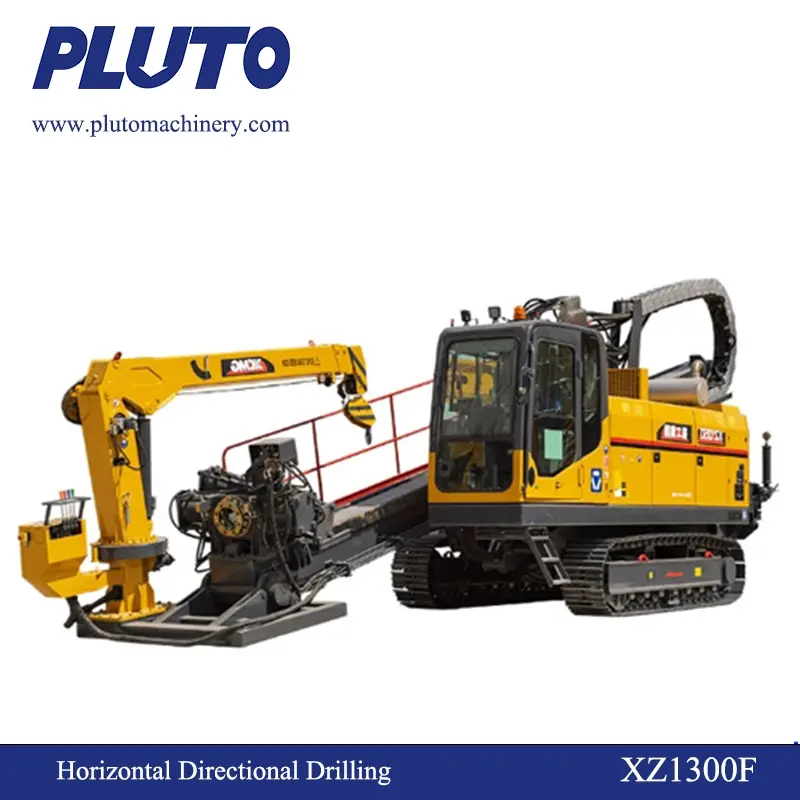

XCMG XZ1300F Horizontal Directional Drilling Rig Machine HDD Drill Equipment

Product model: XZ1300F horizontal directional drilling rig
Manufacturer: Xuzhou XCMG Basic Engineering Machinery Co., Ltd.
The horizontal directional drilling rig is an integrated, fully self-contained design. It adopts a number of advanced energy-saving control technologies such as closed energy-saving circuits, electro-hydraulic proportional control, and load-sensitive control as well as the company’s proprietary technology. Its main performance parameters and control technology have reached international standards. advanced level. The hydraulic system, transmission system, reducer, electrical control system and other main components are made of first-class international brand products with high reliability.

1.Features Introduction of HDD

1. Equipped with an advanced digital display system, the new-generation intelligent drilling rig can directly present key construction parameters like rotational torque and push-pull force. This innovative design eliminates the inconvenience of traditional drilling rigs that rely on pressure gauge conversions for parameter reading, enabling simpler and more intuitive operation.

2. Featuring adaptive engine power, the rig is enhanced with extreme load control capabilities and automatic idling functionality. This intelligent power management system effectively reduces fuel consumption by 10%, achieving better energy efficiency.

3. It offers multiple working mode options. Operators can select the appropriate operating mode based on different formation conditions, ensuring the equipment boasts wide adaptability and high work efficiency in various construction scenarios.

4. The rod torque of the power head is fitted with an overload protection system. Adopting electronic sensing technology, this system delivers fast response, high sensitivity, and reliable performance, making it well-suited for complex working environments.

5. The efficient one-key operating system simplifies operations significantly, including semi-automatic one-key rod lifting, one-key unloading, one-key vice release, one-key working speed adjustment, one-key high-speed rotation, and one-key high-speed push-pull. This streamlined operation boosts work efficiency by 15%.

6. The intelligent safety control system integrates multiple protective functions: it judges the power head position in real-time, automatically decelerates when the power head reaches the front or rear limit positions to reduce impact, and is equipped with a semi-automatic power head anti-collision interlock system to prevent misoperation risks.

7. The mud flow multi-speed stepless speed regulation system, combined with mud auto-start and stop technology, not only saves mud usage but also minimizes environmental pollution, aligning with green construction concepts.

8. The tilting vice is integrated with a rotating cab, providing operators with a wide field of vision. Additionally, the multi-functional dual handles and wireless proportional travel system ensure comfortable, efficient, and safe operation.

9. Dual rocker arms provide stable support for the rig, and it achieves the lowest soil penetration height in the industry. These features make it a reliable and powerful equipment for urban construction projects.

10. An optional power-boosted power head is available to meet customers’ special construction requirements, offering enhanced flexibility and customization options.

2. Drill pipe and drilling tool configuration

The XZ1300F horizontal directional drilling rig drill pipe, drilling tools and other accessories are configured as follows:

3.Main technical parameters

4.Core parts subsidiary

5.The Machine Appearance and Transportation

The machine transportation Dimension 11680×2760×3540mm
Shiping weight(free of Drill and Drilling Tools) 25t

6.Accompanied Attached Documents

HDD machine start when accompanied by the packing list, include the following technical documents：
Product certificate
Product Manual
Engine Specification
Air Conditioning of Construction Vehicle General Manual
Operation and Maintenance Manual of Loader Crane
Mud Pump Instruction Manual
Packing List (including wearing parts and spare parts inventory, vehicle tools inventory,
shipping list with items)
