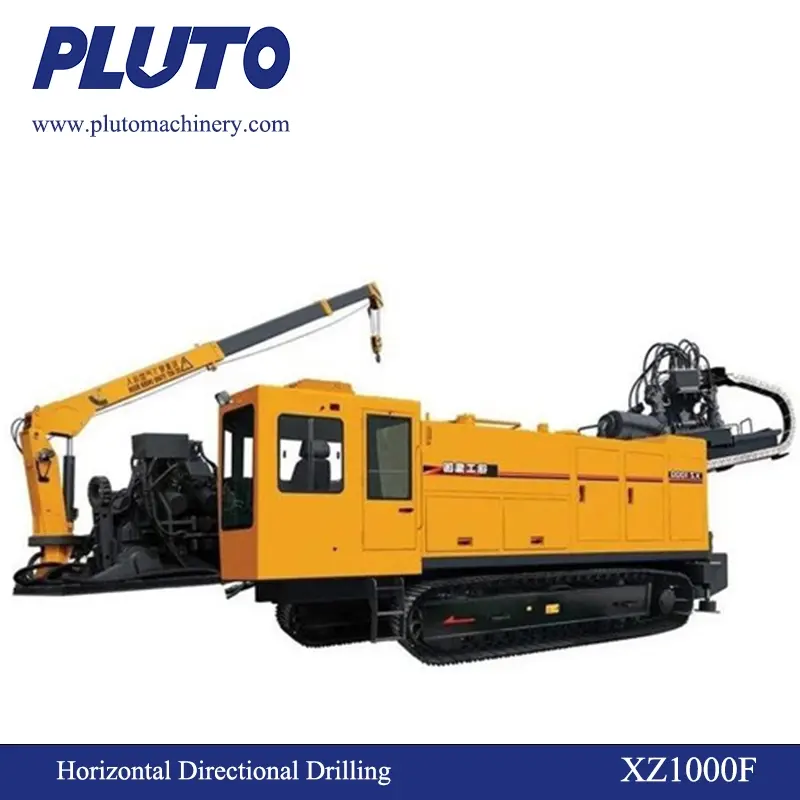

XCMG XZ1000F Horizontal Directional Drilling Rig Machine HDD Drill Equipment

Product model: XZ1000F horizontal directional drilling rig
Manufacturer: Xuzhou XCMG Basic Engineering Machinery Co., Ltd.
The XZ1000F horizontal directional drilling rig is an integrated, fully self-contained design. It adopts a number of advanced control technologies such as closed energy-saving circuits, hydraulic pilot control, load-sensitive control, and the company’s proprietary technology. Its main performance parameters and control technology have reached the domestic level. leading level. The main components such as hydraulic system, transmission system, reducer, and electrical control system are made of domestic and foreign brand products with reliable quality.

1. Highlights

1. A new generation of smart drilling rigs with a digital display system that directly displays the main construction parameters such as rotational torque, push and pull force, etc., overcoming the shortcomings of traditional drilling rigs that require conversion using pressure gauges, and is easy to operate.
2. Adaptive engine power, increased extreme load control, and automatic idling, saving 10% in fuel consumption;
3. Multi-working mode selection, according to different stratum working conditions, select the corresponding operating mode, the equipment has wide adaptability and high work efficiency.
4. The rod torque on the power head is set with an overload protection system, which uses electronic sensing, has fast response, sensitivity, high reliability, and is adaptable to complex working conditions.
5. Efficient one-button operating system, semi-automatic one-button upper rod, one-button unloading rod, one-button unclamping of vise, one-button working speed, one-button high-speed rotation, one-button push-pull high speed, operating efficiency increased by 15%.
6. Intelligent safety control system, including power head position judgment, automatic deceleration of the front and rear positions of the power head to reduce impact, and semi-automatic anti-collision interlocking system of the power head to avoid misoperation.
7. Mud flow multi-speed stepless speed regulation system and mud self-starting and stopping technology save mud and reduce pollution.
8. The tilting vise is combined with the rotating cab, the machine has a wide field of vision, multi-functional double handles, and a wireless proportional walking system, making the operation comfortable, efficient and safe.
9. Double rocker arms provide stable support and the lowest soil penetration height in the industry. It is a powerful tool for urban construction.
10. Optional power-increasing power head can double the pulling force of the power head to meet the special needs of customers.

2. Drill pipe and drilling tool configuration

XZ1000F horizontal directional drilling rig drill pipe, drilling tools and other accessories are configured as follows:

3.The main technical parameters

4.Main component configuration

5.Overall machine appearance and transportation

The XZ1000F drilling rig is equipped with a semi-automatic drill pipe loading and unloading device. The overall dimensions are shown in the figure below:

6.On-board technical documents

XZ1000F HDD includes following documents when delivery.
Product Certificate
Instruction Manual
Operation and Maintenance Manual of Engine
Quality Assurance Manual of Engine
Operation and Maintenance Manual of
Loader Crane
Mud Pump Instruction Manual
Packing List (including wearing parts and spare parts inventory, vehicle tools
inventory, shipping list with items)
