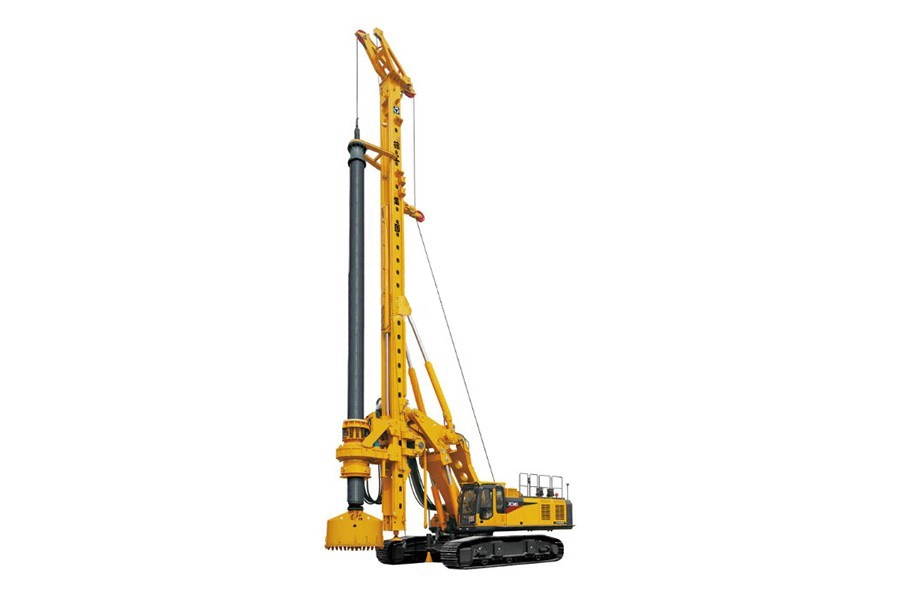

XCMG XR280E Rotary Drilling Rig Product Introduction

As a new-generation large-tonnage product of the E-series rotary drilling rigs, the XR280E is upgraded and upgraded based on the mature XR280D model, a classic product in our company’s construction machinery lineup. To further enhance construction efficiency, this large-tonnage rotary drilling rig has increased power output and optimized system flow, which can effectively shorten the construction cycle and improve the overall construction efficiency of foundation engineering, bringing more competitive advantages to global contractors.

Focusing on operational stability and long-term reliability—core demands of heavy-duty foundation construction—the XR280E rotary drilling rig adopts a full set of optimized large-scale structural components. These key components include a slewing platform with an I-beam structure (high load-bearing capacity and strong stability), a double jib parallelogram luffing mechanism (smooth amplitude adjustment and high precision), a segmented thick-plate drilling mast (strong anti-deformation ability and long service life), and a vertical pin type power head bracket (stable power transmission and low failure rate). These professional structural designs comprehensively improve the equipment’s adaptability to high-intensity construction and reduce subsequent maintenance costs.

With its excellent comprehensive performance, the XR280E rotary drilling rig is widely applied in foundation construction projects of various large and medium-sized infrastructure, including ports, docks, highways, railways, bridges, high-rise buildings and urban complex projects. In practical construction, it can be flexibly equipped with mechanical interlocking or friction Kelly bars, and cooperate with different types of rotary buckets (such as sand drilling buckets, tubular drills and short spiral drills) to adapt to diverse geological conditions. At the same time, it supports CFA (continuous flight auger) or dual rotary drive working modes, which further expands its application scope and meets the diverse needs of global foundation construction.

XCMG XR280E Highlights

1.One machine with multiple functions, can achieve quick switching of functions such as oil cylinder pressurization, winch pressurization, pipe rolling machine, long screw, dual power head, etc., to meet the needs of more different engineering construction projects.

2.Adopting a specialized H-shaped hydraulic telescopic track chassis for rotary drilling rigs, equipped with large-diameter rotary bearings, ensuring strong stability and convenient transportation.

3.Optimized design of dual arm variable amplitude mechanism, optimized hinge point position, balancing construction stability and convenient transfer transportation.

4.Both the main and auxiliary winches adopt single row rope technology, and the service life of the steel wire rope is 2-4 times longer than that of multi-layer ropes, with lower operating costs.

5.Equipped with a Volvo electronically controlled turbocharged engine for greater power, stronger power, and lower fuel consumption.

6.The pressure system adopts load sensing technology, combined with total power control and limit power control technology, to improve the efficiency and energy saving of the hydraulic system. It adopts an independent radiator system, which has high heat dissipation efficiency.

7.Multi gear power head and dual motor single row rope main winch improve working performance by 20%, resulting in higher operating efficiency.

8.The intelligent control system realizes functions such as automatic adjustment and display of the verticality of the drilling mast, automatic rotation, automatic soil throwing, automatic lifting and pouring of the long spiral construction method, and pile type display. It adopts a bus panel design to effectively prevent misoperation.

XCMG XR280E Main technical Parameters

XCMG XR280E Technical Introduction

1. Chassis

It adopts XCMG TDP series retractable crawler chassis dictated for rotary drilling rigs which has high structural strength, large diameter slewing bearing and superior stability. The most mature dictated chassis for rotary drilling rigs in the industry has been applied to more than 2,000 piling equipment.

2. Engine System

The engine is selected as an imported Volvo electronically controlled turbocharged engine, which has low fuel consumption and meets Euro III emission standards. It can also be equipped with a four stage emission standard, which is energy-saving and environmentally friendly; Sufficient power reserves to meet the requirements of high-altitude construction.

3. Hydraulic System

The main hydraulic system adopts load-sensitive technology to obtain the best composite action handling performance. Main pump with constant power control provides high working efficiency. The auxiliary system adopts load-sensitive technology to be energy-saving and efficient.

4. Rotary Drive

Adopting a vertical pin connection type power box and bracket, it has high reliability and is easy to disassemble and assemble quickly; The lower cover of the box is designed with double-layer sealing, which has good sealing performance and long service life; Standard casing driver, strong casing running ability of drilling rig.

5. Winch

The main and auxiliary winches both adopt XCMG’s industry-leading single row rope technology, effectively solving the problem of wire rope wear and improving the service life of wire ropes by 2-4 times. The main winch meets the operating conditions of M6-T5.

Main winch：

Auxiliary winch：

Pressure winch (optional):：

6. Kelly Bar

Mechanical interlocking and friction Kelly bars are optional for XR280E rotary drilling rig. Mechanical interlocking Kelly bar is suitable for rock formations and friction Kelly bar is suitable for soil formations. There are four-section mechanical interlocking Kelly bar and five-section friction Kelly bar.

Drilling depth (as listed)

7. Drilling Mast

The segmented-plate thick box-type design of high-strength material combines strength and rigidity. It is equipped with double jib large parallelogram luffing mechanism to obtain larger support range, support angle and more stable operations.

8. Cab

Anti-noise cab with FOPS function is equipped with air conditioner, internal and external lighting, windshield wiper with water spray function, etc. Large skylight design provides a good view; upper protective net can be opened for easy cleaning. The seat, display screen and monitor screen can be adjusted to provide the operator with a comfortable working environment.

9. Electrical system

Rexroth RC28 series controller and Hirschmann 10.4-inch displayer are adopted; the page layout takes full consideration of humanization and convenience; hierarchical processing is adopted, where data calibration and parameter modification require different permissions; inclination, pressure and other sensors are all imported; wiring harness adopts knitting technology to be waterproof and wear-resistant; gadgets like rubber are applied to connectors to ensure waterproof performance.

XCMG XR280E Configuration

1. Function Configuration Table
