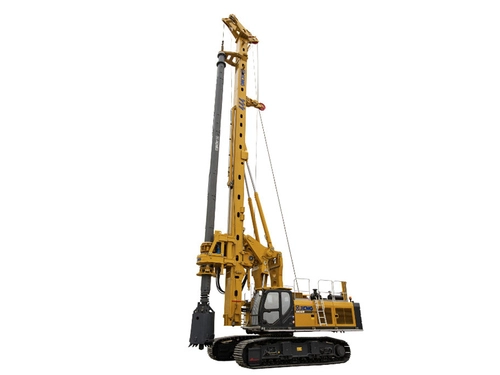

XCMG XR240E Rotary Drilling Rig

The XCMG XR240E rotary drilling rig is a part of the company’s new generation of medium-tonnage E-series products. Building upon the mature XR220D, it offers increased power and system flow to enhance operational efficiency. Large structural components have been optimized, incorporating elements such as an I-beam structure for the rotating platform, a double-acting large parallelogram luffing mechanism, a segmented plate thickness-style drilling mast, and a vertical-pin-style power head support, all contributing to improved stability and reliability during operations.

This drilling rig is widely used for boring operations for concrete pouring piles in the construction of highways, railways, bridges, and large venues, making it especially suitable for civil and industrial building projects. It employs either interlocking or friction Kelly bars in conjunction with sand-grab buckets, barrel drills, or short spiral augers for rotational drilling. Additionally, it can be outfitted with long spirals, dual power heads, casing oscillators, and other working devices for construction.

XCMG XR240E Rotary Drilling Rig Highlights

1. Excellent Multifunctionality:

The horizontal directional drill is designed with strong multifunctional performance, capable of quick and smooth switching between various key working functions such as cylinder pressurization, winch pressurization, casing oscillator, long auger, and dual power head. This flexible functional configuration fully meets the operational needs of a variety of different horizontal directional drilling construction projects, enhancing the equipment’s applicability and utilization rate.

2. Efficient and Energy-Saving Power Configuration:

Equipped with an Isuzu electronically controlled turbocharged engine, the horizontal directional drill features low fuel consumption, energy-saving operation, and convenient, quick maintenance and servicing. This power configuration effectively reduces daily operation and maintenance costs while ensuring long-term stable and efficient operation of the directional drilling rig.

3. Improved Operational Efficiency:

The performance of the power head and main winch of the horizontal directional drill has been upgraded by 20%, significantly enhancing the overall operational efficiency of the equipment. This upgrade helps shorten the construction cycle and improve the progress of horizontal directional drilling projects.

4. Enhanced Casing Driving Capacity:

The power head of the horizontal directional drill can be optionally equipped with a torque multiplier, which can reach a casing driving torque of 360 kN·m. This design greatly strengthens the equipment’s ability to lower the casing, adapting to more complex construction conditions.

5. Extended Wire Rope Service Life:

Both the main and auxiliary winches of the horizontal directional drill adopt single-layer rope technology. Compared with traditional multi-layer ropes, this technology can extend the service life of the wire rope by 2-4 times, effectively reducing the use and replacement cost of the equipment.

6. More Stable Supporting Performance: The equipment is equipped with a double-acting large parallelogram luffing mechanism, which provides a larger supporting angle and increases the supporting range by 16%. This structure ensures more stable operation of the horizontal directional drill during construction, improving construction safety.

7. Advanced Hydraulic Control System: The main hydraulic system of the horizontal directional drill adopts negative flow control technology, which features rapid response speed and excellent control performance. This ensures flexible and precise operation of the equipment, adapting to the fine operation requirements of various construction scenarios.

8. High-Temperature Adaptability: A high-power temperature-controlled independent hydraulic oil cooler is installed on the horizontal directional drill, making it suitable for construction in high-temperature areas. The cooler can automatically adjust the fan speed according to temperature changes, achieving energy-saving effects while ensuring the stable operation of the hydraulic system.

9. Intelligent Operation System: The horizontal directional drill is equipped with an intelligent control system, which can realize automatic adjustment and display of mast verticality, automatic rotation, automatic soil discharge, automatic lifting and pouring with long auger techniques, and pile type display. The bus panel design minimizes operating errors, simplifies the operation process, and improves construction accuracy and efficiency.

10. Convenient Transport and Transfer: The undercarriage of the horizontal directional drill can be optionally equipped with transport legs, supporting remote control operation. This design makes the transport and transfer of the equipment easier and safer, reducing labor intensity and improving work efficiency.

XCMG XR240E Two Main technical parameters

Max drilling diameter		mm	Φ2200（Hydraulic cylinder pressurization ）
Max drilling diameter		mm	Φ2000（Winch pressurization）
Maximum drilling depth		m	70
Working height		m	22.7
Working weight		t	82
chassis	Width	mm	3250~4400
	Track shoe width	mm	800
	Track length	mm	5715
	Drive force	kN	485
	Walking speed	km/h	0~1.8
Amplitude	Scope of work	mm	3850~4550
Drilling mast	Sidewards inclination	°	4
	Anteversion	°	5
	Tilt back	°	15
power head	Torque	kN·m	240
	Speed	r/min	7~30
	High speed soil throwing (optional)	r/min	90
	Increased torque (optional)	kN·m	360
Hydraulic cylinder pressurization	Press	kN	210
	Lift force	kN	220
	Trip	mm	5000
	Slow speed	m/min	5.8
	Fast speed	m/min	12
Winch pressurization (optional)	Pressure/Lifting force	kN	250/250
	Trip	m	15
	Slow speed	m/min	7
	Fast speed	m/min	30
	Rope diameter	mm	24
Main winch	Tifting force	kN	240
	Speed	m/min	0~70
	Rope diameter	mm	32
Auxiliary winch	Lifting force	kN	80
	Speed	m/min	0~70
	Rope diameter	mm	20
Auxiliary winch	Model	/	Isuzu GB3-6UZ1X-270-2000
	Power	kW	270
	Diesel tank	L	580
	Emission	/	Ⅲ/Ⅳ
Hydraulic system	Maximum flow	L	2×280+90
Hydraulic system	Maximum working pressure	MPa	34.5

XCMG XR240E Technology

1. Chassis

Equipped with XCMG TDP series rotary drilling rig specialized retractable track chassis, with high structural strength, large diameter heavy-duty rotary support, and ultra strong stability. The most mature chassis technology for rotary drilling rigs in the industry, with over 2000 experience in the application of piling equipment.

Track length	5715mm
Track width	4750mm
Track outer width	3250/4400mm
Track shoe width	800mm
Number of supporting wheels	12个
Drive force	485kN
Walking speed	1.69km/h
Ground pressure	125kPa

2、Engine system

The engine is selected as an imported Isuzu electronically controlled turbocharged engine, which has low fuel consumption, meets Euro III emission standards, and is energy-saving and environmentally friendly; Sufficient power reserves to meet the requirements of high-altitude construction.

Model	ISUZU A
Rated power	270kW
Rated speed	2000r/min
Maximum torque	1450N·m
Emission standard	欧Ⅲ
Fuel tank capacity	580L

3. Hydraulic system

The hydraulic main system adopts negative flow control technology, which has fast response and good handling performance. It adopts constant power control for the main pump, resulting in high construction efficiency. The auxiliary system adopts load sensitive control technology, which is energy-saving and efficient.

maximum flow	2×280L/min+90L/min
Maximum working pressure	34.5Mpa
Hydraulic oil tank capacity	850L

4、Power head

Adopting a vertical pin connection type power box and bracket, it has high reliability and is easy to disassemble and assemble quickly; The lower cover of the box is designed with double-layer sealing, which has good sealing performance and long service life; Can be directly equipped with casing drivers, torque multipliers, etc., to enhance the drilling rig’s ability to run casing.

Maximum torque	240kN·m
Speed	7~30r/min
Maximum pressure increase	210kN
Maximum lifting force	220kN
Trip	5m

5、Winch

The main and auxiliary winches both adopt XCMG’s industry-leading single row rope technology, effectively solving the problem of wire rope wear and improving the service life of wire ropes by 2-4 times. The main winch meets the operating conditions of M6-T5.

6. Drill pipe

The XR240E rotary drilling rig can be matched with machine locking rods or friction rods. Machine lock rods are suitable for rock layers, and friction rods are suitable for soil layers. The drill rods have four machine lock rods, five friction rods, and six friction rods, respectively.

Drill pipe diameter φ440 orφ406mm

Drill pipe diameter 200×200 mm

Drilling depth (see table below)

Serial number	Drill pipe configuration	Drilling depth（m）	Weight of drill pipe（kg）	notes
1	JS440-4×15.5	56	10700	standard configuration
2	MZ440-5×15.5	70	10700	Optional
3	JS406-4×15.5	56	10550	Optional
4	MZ406-5×15.5	70	9600	Optional
5	MZ440-6×14.8	80	10400	Special configuration

7. Drilling mast

The box shaped structure design made of high-strength materials combines strength and rigidity, combined with a double arm large parallelogram variable amplitude mechanism, providing a wider range and angle of support for more stable operation.

Mast tilt left/right 4°/4°

Mast forward/backward tilt 5°/15°

8. Driver’s cab

A noise proof cab with FOPS function, equipped with cold and warm air conditioning, internal and external lighting, windshield wipers with water spray function, etc. Large skylight design, good visibility; The protective net can be opened for easy cleaning. The seat, display screen, and monitoring screen can all be adjusted to provide a comfortable working environment for the operator.

9. Electrical system

Adopting Rexroth RC30 series controllers and Hesmann 10 inch displays; Display page layout, fully considering humanization and convenience, hierarchical processing, data calibration, parameter modification, etc. require different permissions; The inclination angle, pressure and other sensors use imported components; The wiring harness adopts weaving technology, which is waterproof and wear-resistant; Add rubber and other small accessories to the connectors to ensure waterproof performance;
