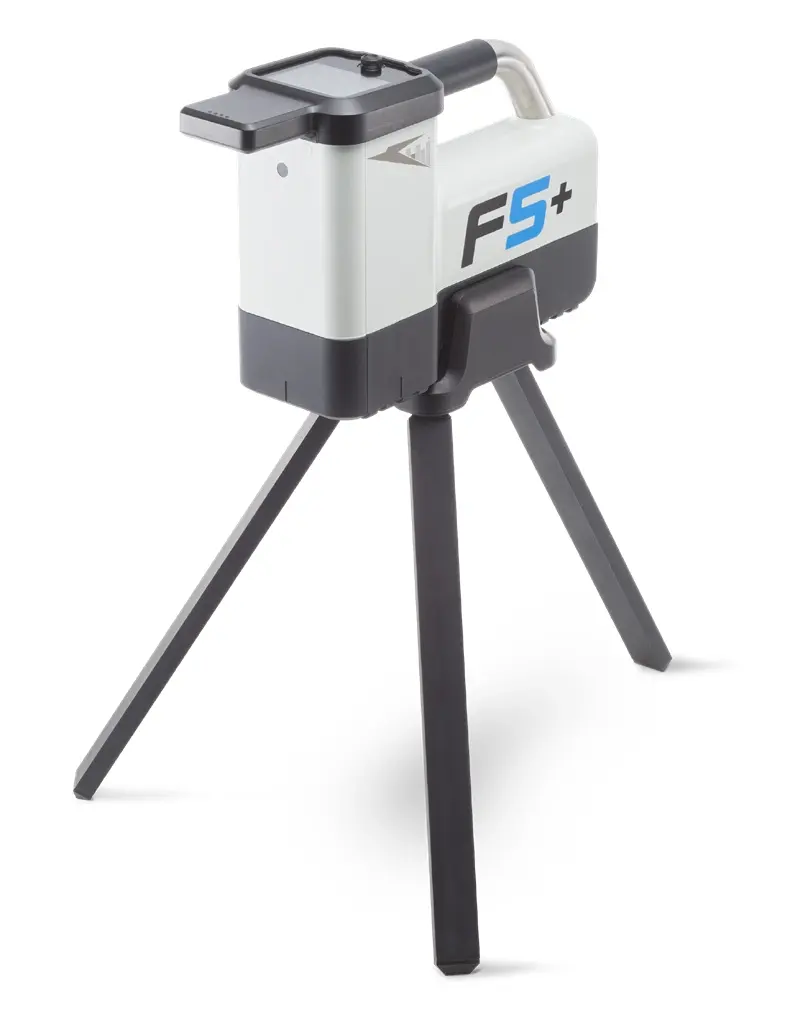

New Falcon F5+ Guidance System: Key Advantages
New Advantages of Falcon Technology
Depth and data range upgraded to 55/67 meters, featuring expanded frequency coverage for more project applications.
Increased the depth and data range – 55/67 meters, and combined more frequencies to complete more engineering projects.
Multi-power – Three easily selectable power modes for deeper drilling, longer battery life and faster data transmission rates.
The Most Advanced Guidance System
Interference is the top challenge in horizontal directional drilling (HDD) – and the Falcon F5+ solves this with the widest frequency range of any guidance system on the market. Its ultra-low frequency Sub-K™ Rebar Sensor enables precise drilling through reinforced concrete, while higher frequencies combat active interference from cellular towers, traffic induction loops and power lines.
Equipped with the performance and versatility you need, the Falcon F5+ lets you complete every project safely, accurately and on time. One guidance system for all your HDD projects.
In summary, the New Falcon F5+ Guidance System is more than just a navigation tool—it is a strategic investment in construction project efficiency, accuracy, and profitability. With its unrivaled precision, user-friendly design, rugged durability, seamless integration, and exceptional support, it empowers construction professionals to tackle even the most complex projects with confidence. Whether you are a general contractor, equipment rental company, or specialized drilling contractor, the F5+ delivers the reliability and performance needed to stay ahead in today’s competitive construction industry.
Easy to Learn & Use
For more than 30 years, DigiTrak® guidance systems have defined the industry standard for positioning performance and advanced feature accessibility.
Boasting enhanced Falcon+ features, our DigiTrak® guidance system now offers more powerful, intuitive positioning than ever—enabling simpler training, quicker setup, and more projects completed in less time.
Exclusive Features of the DIGITRAK® Falcon F5+
The Same Falcon F5, Fully Upgraded with New Features
More than 1,000 frequencies available, spanning the full spectrum from the lowest to highest frequencies with the industry’s widest band range.
Drill through reinforced concrete with ease using our industry-exclusive Sub-K™ Rebar Sensor—engineered for precision in tough conditions.
Patented real-time downhole drilling fluid pressure monitoring cuts the risk of unexpected mud overflow, boosting drilling safety.
Create drilling maps via on-board iGPS and generate professional as-built reports effortlessly with our LWD (Logging While Drilling) APP—all during active drilling operations.
Falcon F5+ Specifications
| Product ID / Model | FF5+ / FAR5 |
|---|---|
| Receiving Frequency | 4.5–45 kHz |
| Receiving Frequency (Sub-K Ultra-Low Frequency) | 0.33–0.75, 4.5–18 kHz |
| Accuracy | ±5% (at maximum depth range) |
| Sensing Depth Range ¹² | Up to 55 m |
| Sensing Data Range ¹² | Up to 67 m |
| Compatible Sensors | FT5XLp, FT5Lp, FT5p, FTR5Lp, FTR5p, FTR5 |
| Compatible Receiver Batteries | Lithium-ion Battery Pack (FBP) & NiMH Battery Pack (SBP) |
| Receiver Battery Life ³ | Up to 12 hours |
| Compatible Remote Displays | Aurora Remote Display & Falcon Compact Display (FCD) |
| Telemetry Distance ⁴ | Up to 914 meters |
¹ Achievable with the 24-inch FT5XLP sensor in High Power Mode and Extreme Mode.
² Range data is based on the SAE J2520 standard. Actual range and battery life may vary depending on interference, sensor housing, frequency and other factors.
³ Achievable with the Falcon Lithium-ion Battery Pack (FBP).
⁴ Achievable with the Aurora Remote Display and Yagi antenna.
Falcon+ stands for wide adaptability

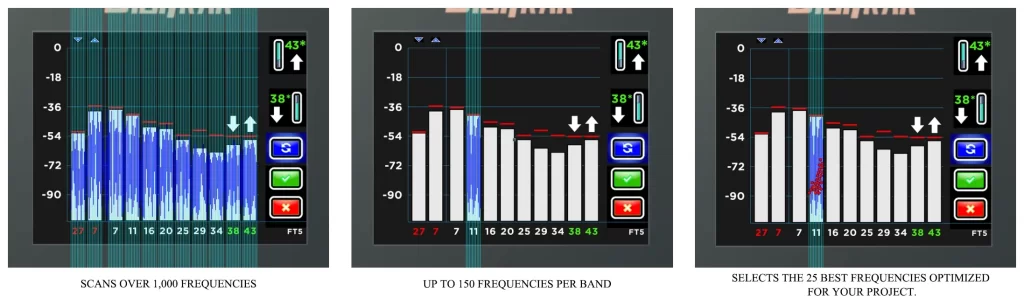

The Falcon F5+ can automatically scan over 1,000 frequencies and select the optimal frequency within each band according to your construction site. As interference changes, it can switch between the two selected optimal frequency bands during drilling.
25 frequencies operate simultaneously, allowing you to complete the project on the first drilling run. In contrast, competing products can only use one frequency at a time during drilling.
