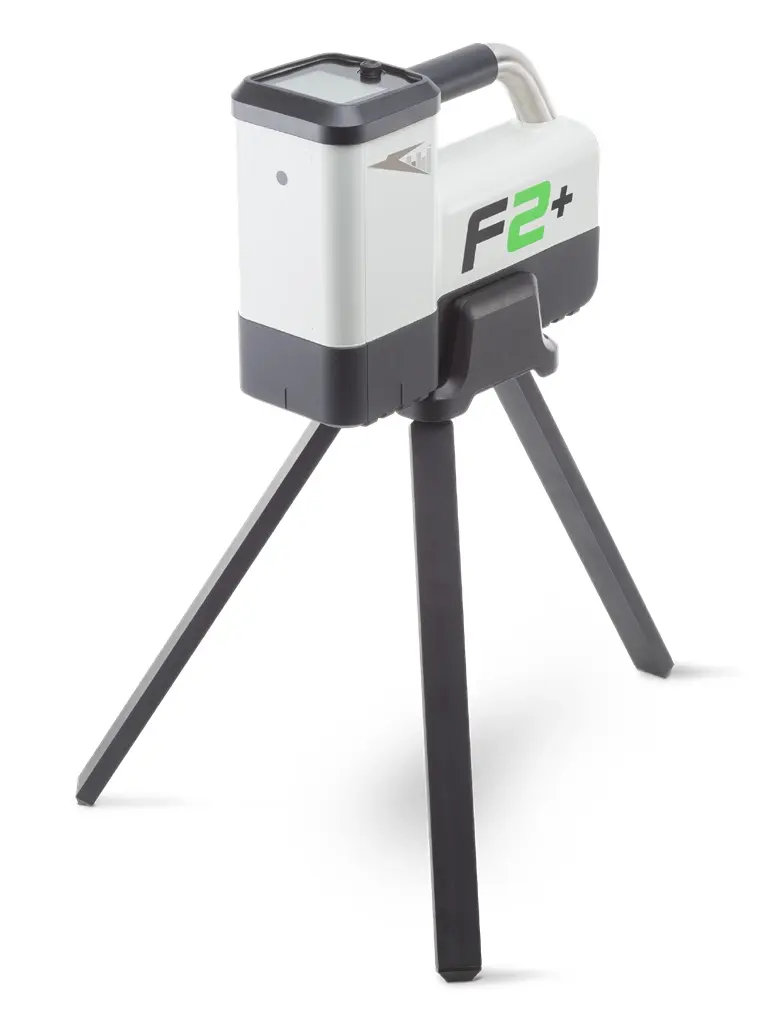

DigiTrak Falcon F2+ Locator
MADE IN U.S.A
Falcon+ Advantages New Advantages of Falcon Technology
Increased depth and data range – 49/61 meters, combined with more frequencies to complete more projects.
Fast Scan Pairing – Now only two clicks are needed, making it easier to scan, select and match the locator’s custom frequencies.
Multi-Power – With three easily selectable power modes for deeper drilling, longer battery life and faster data transfer rates.
Proven Success
Since 2016, DCI’s exclusive Falcon technology has earned acclaim for its superior performance in overcoming active and passive interference. Enhanced with new Falcon+ features, the Falcon F2+ is more powerful and easier to use than ever, resulting in easier training, faster setup, and time savings to complete more projects.
Solving More Challenges
In today’s market, employee turnover is an increasingly serious problem. At the same time, the extensive use of wireless technology has made walk-behind locating more challenging. In response, DCI has made frequency optimization technology easier to use than ever before.
Falcon+ introduces sensor power level settings for faster face and tilt response speeds, longer battery life, and greater depth.
Regardless of your skill level, the Falcon F2+ provides you with these tools and boosts your confidence to complete projects even in the most challenging interference environments.
DIGITRAK® F2+ Features
The Same Falcon F2, With a Brand-New Upgrade
Customize your locator by scanning over 500 frequencies to find the most suitable frequency band for the job site.
Reliable Look-ahead™ forward-looking locating performance and accuracy you can trust.
The new 19-inch multi-power sensor with the deepest range and most powerful performance on the market.
24 clock positions provide drillers with double the options and double the precision.
DigiTrak Falcon F2+ Locator Specifications
| Product Model | FF2+ / FAR2 |
| Receiving frequency | 4.5–45 kHz |
| Accuracy | ±5% of maximum depth range |
| Sensor depth range¹⁻² | Max. 49 m |
| Sensor data range¹⁻² | Max. 61m |
| Compatible Sensor Models | FT2L+, FT2 |
| Compatible Locator Batteries | Lithium-ion battery pack (FBP) and NiMH battery pack (SBP) |
| Locator Battery Life | Up to 14 hours (achieved with Falcon Lithium-ion battery pack (FBP)) |
| Compatible Remote Displays | Aurora remote display and Falcon Compact Display (FCD) |
| Telemetry distance⁴ | Up to 914 meters |
1 Achievable with the 19-inch FT2L+ sensor in High Power and Extreme Modes.
2 Range data is based on SAE J2520 standards. Actual range and battery life may vary depending on interference, sensor housing, frequency, and other factors.
3 Achievable with the Falcon Lithium-Ion Battery Pack (FBP).
4 Achievable with the Aurora Remote Display and Yagi antenna.
Falcon+ Equals Extensive Adaptability

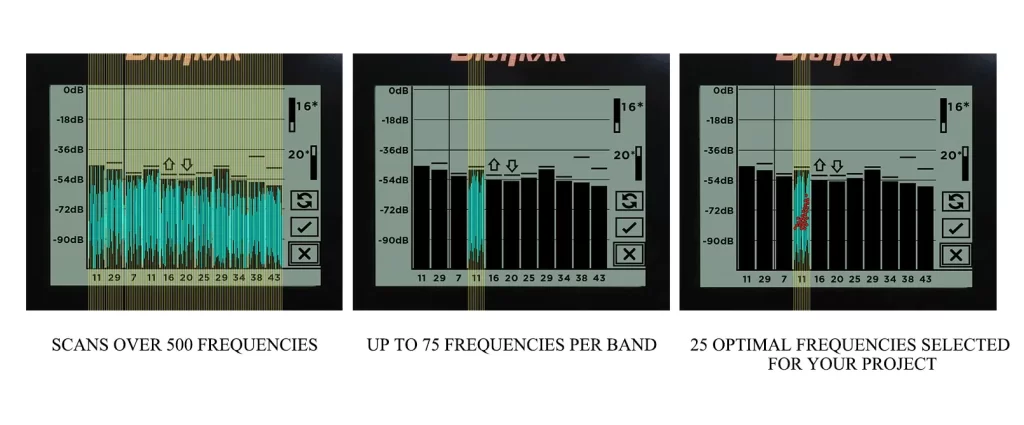

The Falcon F2+ can automatically scan over 500 frequencies and select the optimal frequencies in each band based on your job site conditions.
It can switch between the two selected best bands during drilling as interference changes.
25 frequencies operate simultaneously, allowing you to complete the project on the first drill-in, while competing products use only one frequency at a time during drilling.
