DigiTrak Falcon F1 Dual-band Locator Features
Increased depth and data range – 30/38 meters, combined with more frequencies to complete more projects.
Fast scan pairing – Now only two clicks are needed, making it easier to scan, select and match the locator’s custom frequencies.
Dual power – With two easily selectable power modes for deeper drilling, longer battery life and faster data transmission rate.

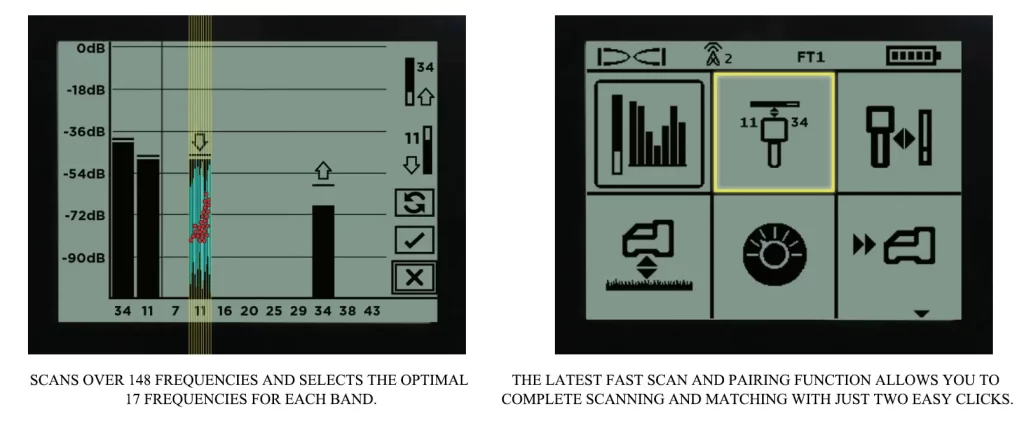

Customize your locator by scanning over 148 frequencies to find the most suitable frequency band for the construction site.
Works with Falcon Compact Display (FCD) or Aurora Remote Display for target steering functionality.
Falcon F1 can be upgraded to Falcon F2+ at any time, quickly, easily and at low cost.
DigiTrak Falcon F1 Rebuilt on Success
In April 2021, DCI released the renamed Falcon F1 based on integrating the design and user experience of all DigiTrak platforms. The current F1 is more powerful and easier to use than ever before, resulting in easier training, faster setup, and time savings to complete more projects.
Falcon F1 Specifications
| Item | Specification |
| Accuracy | ±5% (at maximum depth range) |
| Compatible sensor model | FT1 |
| Compatible locator battery | Lithium-ion battery pack (FBP) and NiMH battery pack (SBP) |
| Locator battery life (with Falcon Lithium-ion Battery Pack FBP) | Up to 14 hours |
| Compatible remote display (with Aurora Remote Display and Yagi antenna) | Aurora Remote Display and Falcon Compact Display (FCD) |
Sensor Specifications

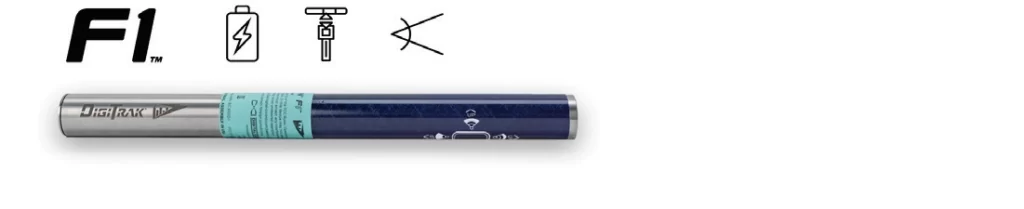

F1 Family, Now Giving You New Choices FIT FT1 15’’
| F1 Dual-band | Features |
| Product Model | F1 Dual-band |
| V2 Dual Power Function | Supported |
| V2 Increased Depth Range | Supported |
| Rechargeable Lithium-ion Battery | Supported |
| V2 Custom Battery Life | Supported |
| 0.1% Inclination (when horizontal) | Supported |
| Falcon Pairing | Supported |

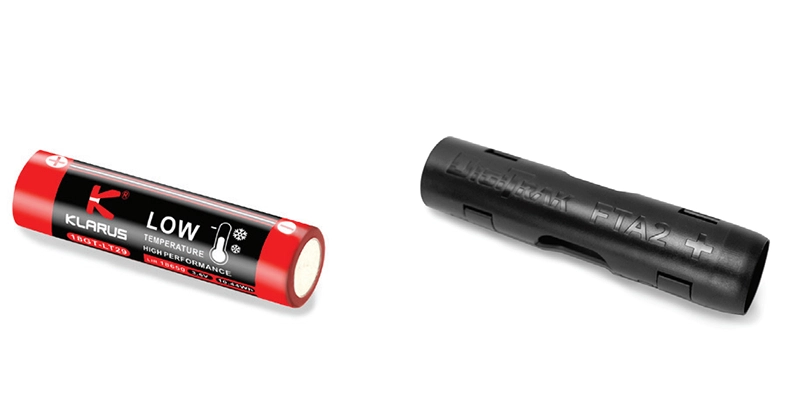

The rechargeable lithium‑ion battery is compatible with the new adapter.
FT1 Sensor Specifications
| Item | Specification |
| Standard power depth/data range¹² | 30/38 meters |
| Low power depth/data range¹²³ | 15/20 meters |
| Length/Diameter | 38/3.2 cm |
| Battery life at standard power (Alkaline/SuperCell lithium battery) | Up to 20/80 hours |
Falcon Equals Wide Adaptability
Falcon F1 automatically scans and selects two sets of optimal frequencies within frequency bands 11 and 34 to adapt to the interference conditions at the construction site. Using 17 frequencies simultaneously allows you to complete the project on the first drill, while competing products can only use 1 frequency during drilling. The new V2 dual power function plus lithium-ion sensor battery further enhances the ability to overcome active interference.
